Keratograph 5M Topography plus dry eye testing.

The OCULUS Keratograph 5M pairs corneal topography with a camera for dye-free tear film, gland and redness testing.

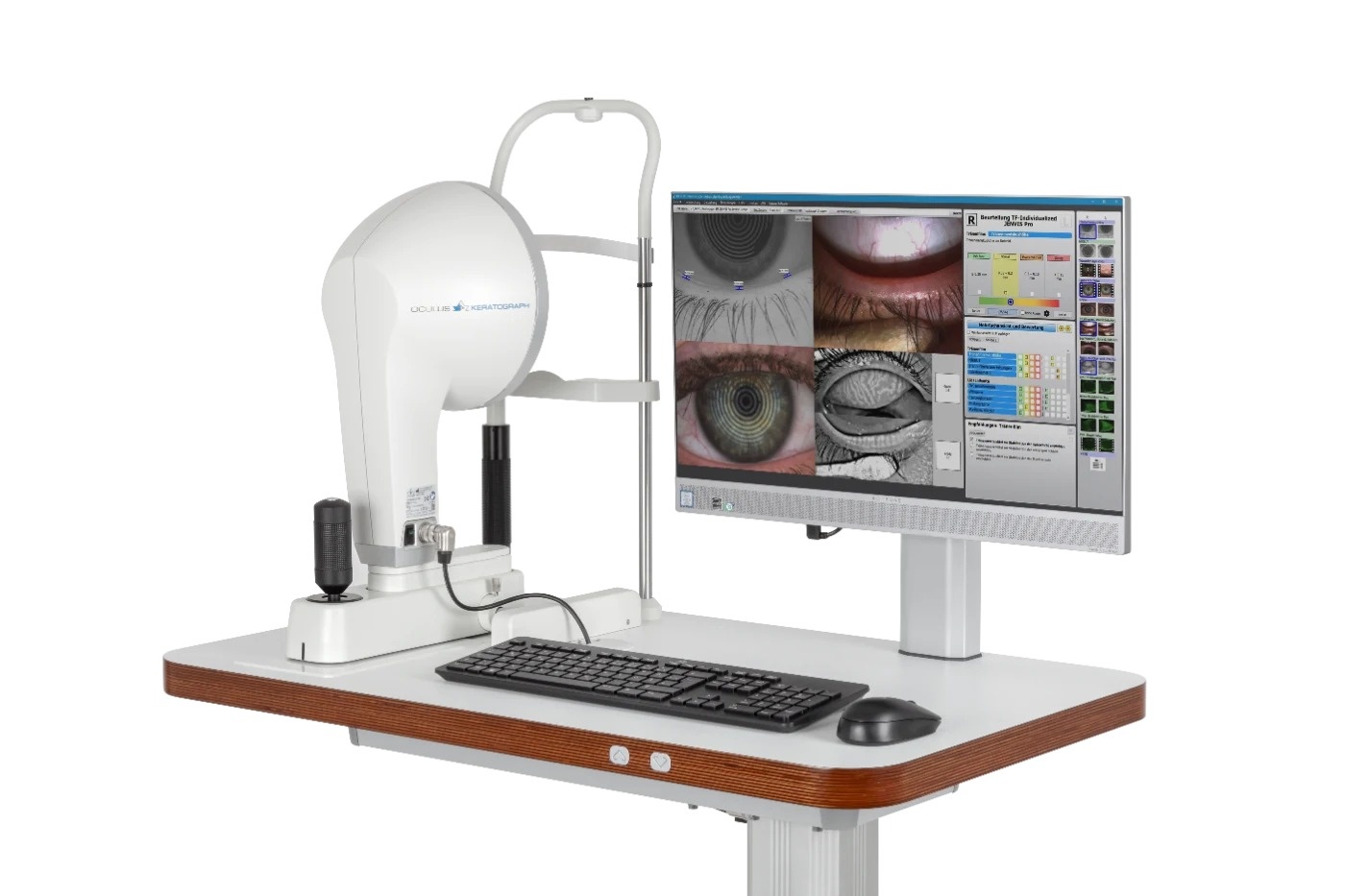

OCULUS Keratograph 5M on its table with monitor
22Placido rings
22,000data points measured per scan
±0.1 Daccuracy and repeatability
No dyeneeded for NIKBUT

Why practices add it

Dye-free dry eye testing from one instrument

Optometry and ophthalmology practices use it alike. Using infrared and white light, the Keratograph 5M records tear film, lid and surface findings with no fluorescein. Calibrated workflows let technicians take the measurements, and automated analysis rolls everything into one report used for diagnosis, patient education and follow-up.

NIKBUT in seconds

Break-up time is measured automatically without dye, under infrared light that avoids glare.

Gland imaging

Meibo-Scan captures the upper and lower lid glands, and Meibo Analytics assesses gland structure and quantifies dropout automatically.

Meniscus and lipid layer

Tear meniscus height is measured without contact, and the lipid layer is judged from its interference pattern.

Redness scored objectively

R-Scan grades bulbar and limbal redness on an objective scale.

A report patients understand

The Crystal TEAR Report brings images, video and the patient's symptom answers into a single summary for the chart, patient education and treatment follow-up.

Topographer, keratometer and external camera together

Placido topography, a true keratometer and several light wavelengths cover dry eye workups and contact lens fitting alike.

  • Dye-free NIKBUT
  • Automatic gland analysis
  • Calibrated workflows techs can run
  • 22-ring Placido topography

    Twenty-two Placido rings produce 22,000 measured points across the anterior cornea, analyzed with Fourier and Zernike methods.

  • True built-in keratometer

    Reports measured anterior K values instead of simulated Ks.

  • Several light sources

    White and 880 nm infrared Placido light, 465 nm blue light for fluorescein imaging and 840 nm infrared for meibography.

  • Imaging and analysis software

    TF-Scan tear film analysis, Meibo Analytics, R-Scan, OxiMap oxygen transmissibility maps, pupillometry and a contact lens fitting database.

In the chair

How the exam runs

The Keratograph 5M dry eye workup is non-invasive, so trained staff can perform it.

Keratograph 5M set up in an eye care exam room

No-touch measurements

NIKBUT, meniscus height, lipid layer, meibography and redness are all taken with no dye and nothing touching the eye.

Quick screening

A four-test screening mode fits routine patients, NIKBUT takes only seconds, and tests run from least to most invasive.

Reporting and follow-up

Findings flow into the Crystal TEAR Report, and side-by-side views make follow-up visits and treatment tracking easier.

Specs

Technical specifications
Accuracy ±0.1 D
Reproducibility ±0.1 D
Placido rings 22
Measuring points 22,000
Working distance 78–100 mm
Camera Digital CCD camera
Light sources Placido: white diodes and infrared diodes (880 nm); imaging: blue diodes (465 nm); meibography: infrared (840 nm); tear film dynamics: white diodes; pupillometry: infrared (880 nm)
Dimensions (W × D × H) 275 × 320–400 × 480–510 mm
Weight, measuring head 3.2 kg
Weight, with xy base 6.1 kg
Max. power consumption 18 W
Voltage / frequency 100–240 V AC, 50/60 Hz
Data export NIKBUT, R-Scan and keratometric data as CSV

Treatment paths

Where imaging leads: the dry eye treatment paths

Dry eye care runs from home care to surgery, and many patients use several paths at once. Vision Rescue does not rank these paths; the treating doctor and the patient choose based on severity, the main driver and the patient's circumstances.

At-home and OTC care

Lubricant drops, gels and ointments, lid hygiene, warm compresses and nutrition. Usually the base layer at every severity.

Recommended by optometrists and ophthalmologists; done by the patient at home. Product guides ›

Prescription therapy

Anti-inflammatory and tear-film drugs such as cyclosporine, lifitegrast and perfluorohexyloctane, varenicline nasal spray, lotilaner for Demodex and short steroid courses.

Prescribed by ophthalmologists and optometrists within state scope. Prescription options ›

In-office procedures

Gland expression, thermal pulsation and lid-heating devices, intense pulsed light, light therapy and lid-margin cleaning.

Offered in optometry and ophthalmology practices, often run by trained staff. In-office procedures ›

Punctal occlusion

Temporary or long-lasting plugs that keep the patient's own tears on the eye, and permanent closure by thermal cautery when plugs are not enough.

Plugs placed by ODs and MDs where state scope allows; cautery closure is a surgical step, usually by an ophthalmologist. Punctal plugs ›

Advanced and surgical care

For severe disease: autologous serum drops, amniotic membrane, scleral lenses and eyelid surgery such as tarsorrhaphy.

Often cornea and oculoplastic specialists, with the co-managing OD or MD. Scleral lenses ›

Sources: TFOS DEWS III Management and Therapy (2025) · AAO Dry Eye Syndrome PPP (2023)

Manufacturers

Companies named on this page

Logos link to each company's website and appear in alphabetical order, at the same size, for identification only.

OCULUS logo

Questions doctors ask about the Keratograph 5M

Does NIKBUT equal fluorescein TFBUT?

No. Non-invasive keratograph break-up time and fluorescein break-up time are measured differently and do not match exactly.

Does NIKBUT work in severe dry eye?

It is harder to measure when the corneal epithelium is badly damaged, and readings in those eyes tend to be very short.

Is NIKBUT thrown off by keratoconus?

Generally not, since the software detects distortion, but advanced keratoconus or marked irregular astigmatism can make the measurement difficult.

Is meibomian gland grading objective?

Meibo Analytics measures gland structure and dropout automatically, and the JENVIS Grading Scales let you compare images directly against reference grades.

Is the Keratograph 5M a diagnostic device for dry eye?

It performs examinations that support a dry eye diagnosis.

Can it image the back of the cornea?

No. Placido topography covers the anterior corneal surface only.

Can I export the data?

Yes. NIKBUT, R-Scan and keratometry data export to CSV.

Do optometry and ophthalmology practices both use Keratograph 5M?

Yes. Optometrists and ophthalmologists use Keratograph 5M imaging to document the ocular surface, plan treatment and track change over time, including surgical practices that assess the ocular surface before surgery.

Add objective dry eye testing to your practice.

One Keratograph 5M gives you corneal topography plus dye-free tear film, meibomian gland and redness testing.
